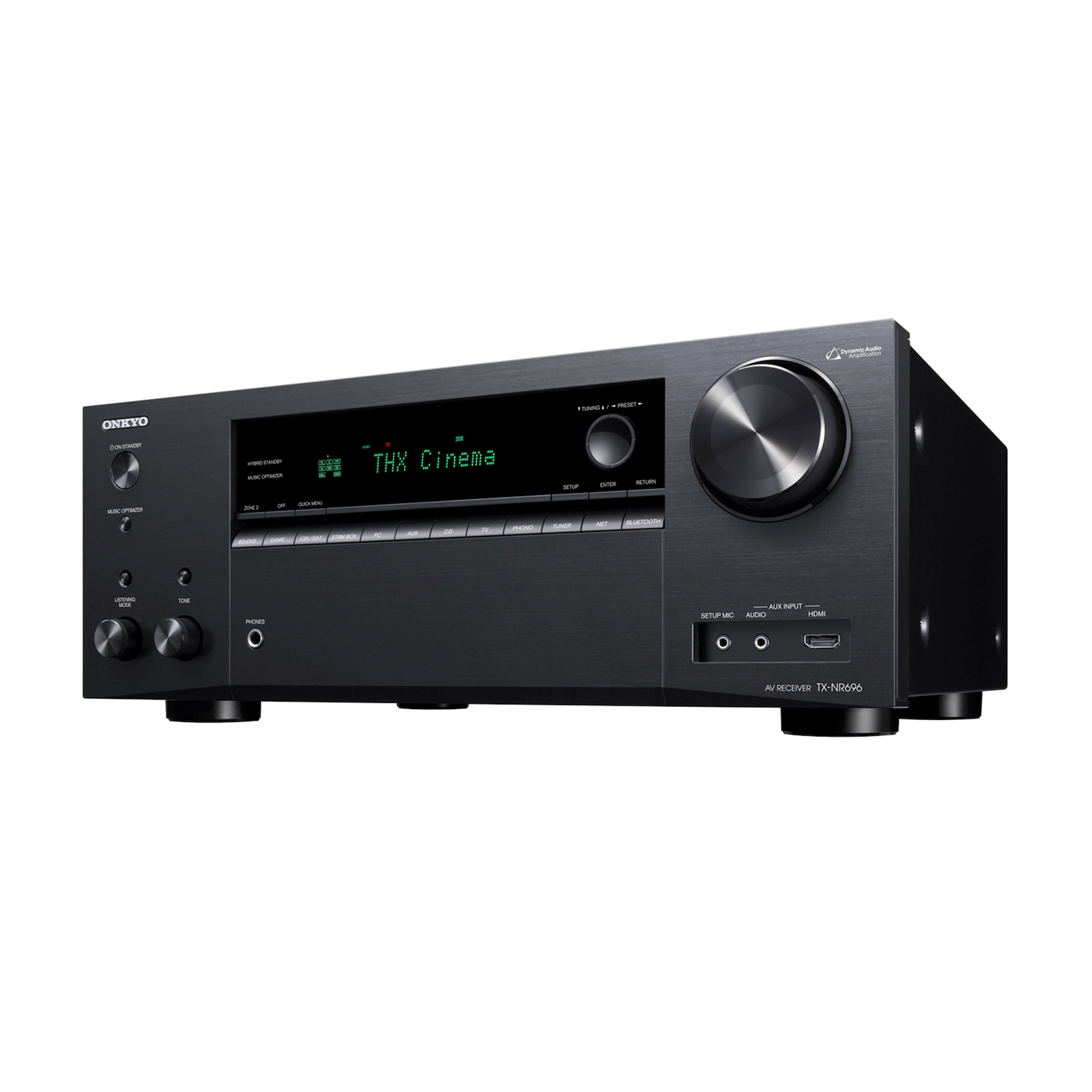

רסיבר קולנוע ביתי מבית ONKYO דגם TX-NR696

פרטים תכנים:

Wi-Fi® * 2. Dolby Atmos® ו- DTS: X® מושכים קהל עמוק לתוך סרטים ומשחקים,

THX Certified להבטיח חוויה ייחודית לקולנוע.
Dolby Atmos Height Virtualizer * 3 ו- DTS Virtual: X ™ * 3 יכולים ליצור שדה שמע תלת-ממדי מפריסות רמקולים אופקיות.
ZONE 2 למקור אודיו לשני חדרים,
עם מערכת DAA revitalized, 4K / 60p / HDR HDMI ™, ותוספות רבות, מוצר זה מצטיין בכל היבט.

175 W / Ch (6 Ω, 1 kHz, 10% THD, ערוץ 1 מונע)
THX Certified
רעש שנאי נמוך,קבלים גדולים ואיכותיים.
חיזוק קו אספקת החשמל לזרם גבוה.

VIDEO & AUDIO SUPPORT

Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG), BT.2020, 4:4:4 color-space, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color™, and LipSync via HDMI
Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio® decoding
Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
Dolby Surround® and DTS® Neural:X upmixing technology
THX listening modes for movies, music, and games
Sound optimization for games (Rock, Sports, Action, and RPG)
SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
Theater-Dimensional virtual surround-sound function
NETWORK FEATURES

Next-Generation Network Audio with multi-room audio, streaming service integration, and remote app control
Works with Sonos certified for the Sonos Home Sound System*7
Chromecast built-in and voice control with the Google Assistant*8
AirPlay 2 multi-room audio and voice control with Siri*9
DTS Play-Fi® multi-room audio via Onkyo Music Control App*10
FlareConnect™ multi-zone audio with compatible components
Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2×2 MIMO) Wi-Fi specification
Supports Onkyo Controller remote and music streaming app*10
Hi-Res Audio playback via network (DSD 11.2 MHz/5.6 MHz/ 2.8 MHz*11; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit*12)

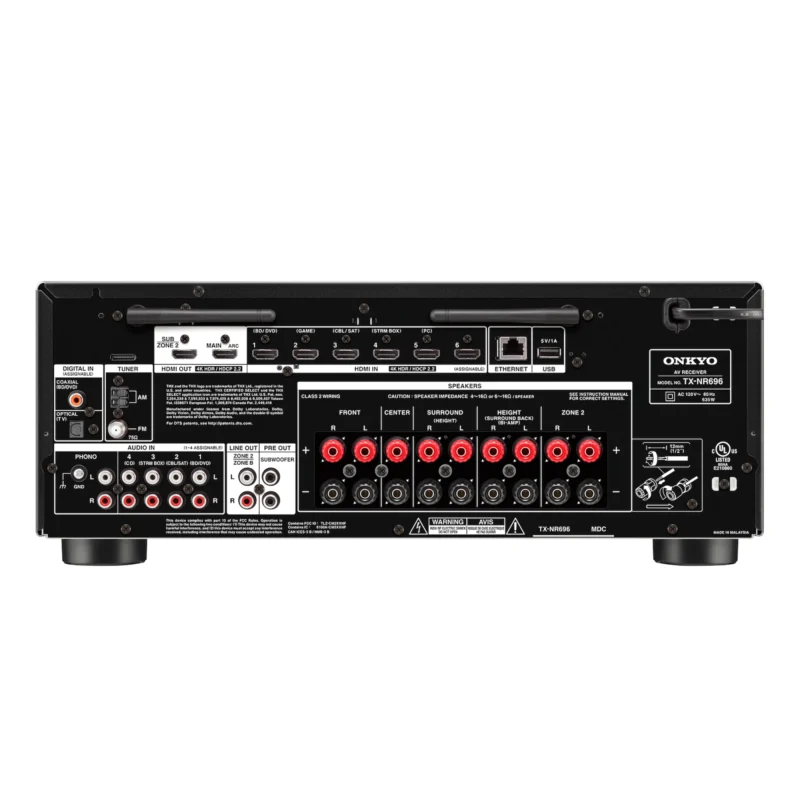

CONNECTION TERMINALS

7 HDMI inputs (1 front), 2 outputs (Main [ARC], Sub/Zone 2)
2 digital audio inputs (optical and coaxial, assignable)
4 analog RCA inputs (assignable)
3.5 mm mini-stereo analog input (front)
1 phono input with built-in MM equalizer for turntable
3.5 mm setup mic input for AccuEQ (front)
6.35 mm headphone jack (front)
2 subwoofer pre-outs
Zone 2/Zone B line-out/Front pre-out (analog RCA)
7 screw-type speaker posts
Ethernet terminal for network connection and IP control
USB input (5 V/1 A) for audio playback (rear)
AC socket for detachable power cable
ADVANCED FEATURES

AccuEQ Room Acoustic Calibration and AccuReflex
DSP Vocal Enhancer boosts dialog audibility via remote keys or front panel
Bluetooth® wireless technology and Wake on Play Standby with auto input selection supporting select smart speakers
Advanced Music Optimizer™ improves compressed audio playback
Zone 2 speaker outputs for powered simultaneous multi-source D/A audio distribution (including HDMI/SPDIF) with Zone 2 DAC; output via Zone 2 and Zone 2 line-out
Front/Height/Surround Back switching (layout dependent) for ambient listening in Stereo Assign Mode
Zone 2/Zone B line-out/Front L/R pre-out (analog RCA) with Zone 2 DAC connects compatible audio systems for synced/independent D/A playback (including HDMI/SPDIF) in Main and Zone 2; connects compatible transmitters for wireless headphones; connects power amp for Front L/R speakers
One-touch volume memory-presets for A/V inputs via front panel
1080p to 4K upscaling and GUI with overlaid OSD via HDMI
Crossover adjustment for each channel(40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
Various standby modes and HDMI pass-through
IP control for home automation systems via LAN
3-Mode display dimmer (Normal/Dim/Dimmer)
40 FM/AM random presets
Redesigned simple remote control


SPECIFICATIONS
Amplifier Section
Power output (All channels)
175 W/Ch
(6 Ω, 1 kHz, 10% THD, 1-ch driven)
165 W/Ch
(6 Ω, 1 kHz, 1% THD, 1-ch driven, IEC)
Dynamic power 240 W (3 Ω, Front)
210 W (4 Ω, Front)
120 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 kΩ (Line)
3.5 mV rms/47 kΩ (Phono MM)
Rated RCA output level and impedance
1 V rms/470 Ω (Subwoofer pre-out)
200 mV rms/2.3 kΩ (Zone B/Zone 2 line-out)
Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker impedance 4 Ω–16 Ω
Tuner Section
Tuning frequency range
FM 87.5 MHz–108 MHz
87.5 MHz–107.9 MHz (Taiwan Model)
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
530 kHz–1,710 kHz (Taiwan Model)
General
Power supply AC 220–240 V~, 50/60 Hz
Power consumption 570 W
635 W (Taiwan Model)
No-sound power consumption
65 W
Standby power consumption
0.15 W
Dimensions (W x H x D) 435 x 173.5 x 379.5 mm
Weight 10.0 kg
CARTON
Dimensions (W x H x D) 534 x 265 x 468 mm
Weight 12.5 kg
Supplied Accessories
• Indoor FM antenna • AM loop antenna • Speaker setup microphone
• Quick Start Guide • Remote controller • AAA (R03) batteries x 2

מידות- גובה: 17.3 ס"מ
– רוחב: 43.5 ס"מ
– עומק:37.9 ס"מ
– משקל: 10.0 ק"ג
